Solution Overview:

The IntesisHome IS-IR-WIFI-1 is an external module designed to connect air conditioning units to a Wi-Fi network, enabling remote control and monitoring via web and mobile applications. The solution involves a straightforward installation and configuration process, detailed below:



Installation Process:

Step 1: Device Placement

  • Wall-mounted Installation:

    • Can be positioned beside, in front of, or below the AC unit, leveraging IR signal rebounds.

    • Refer to Page 7 of User Manual for ideal wall-mounted locations.

  • Desktop Installation:

    • Place on a horizontal surface directly facing the AC unit for optimal IR signal communication.

    • Use included rubber dampers for stability and surface protection (Page 8, User Manual).

Step 2: Power Connection

  • Connect using the provided 5V DC, 0.2A power supply, compatible with EU, UK, US, or AU plugs.

  • An additional cable for direct 230VAC connection is available (Pages 9-10, User Manual).

Step 3: IR Communication Check

  • Wireless Controller Check:

    • Verify IR signal effectiveness by placing the original remote at the intended device location and testing AC unit response (Page 12, User Manual).

  • Parrot Mode (Location Check):

    • Activate by triple-clicking the IH button, sending a continuous IR signal to verify the ideal location (Page 13, User Manual).

Configuration Process:

Step 4: Wi-Fi Configuration

  • Connect a smartphone, tablet, or PC to the IntesisHome device’s temporary Wi-Fi.

  • Open a web browser and navigate to ihconfig.com to follow the setup wizard (Page 15, User Manual).

Step 5: IR Configuration

  • Two modes are available: Learning mode and Manual mode.

    • Learning Mode (Recommended):

      • Press IH button for 4 seconds (white LED activates).

      • Aim the AC remote at the IntesisHome device and press the On/Off button.

      • Green LED blinking indicates successful pairing (Page 16, User Manual).

    • Manual Mode:

      • Log in at user.intesishome.com to select the AC unit brand and model manually (Page 17, User Manual).

Step 6: Device Registration

  • Create or log in to your account at user.intesishome.com.

  • Enter the 25-digit registration code from the provided sticker.

  • Select desired control widgets/functions (Page 18, User Manual).

Operational Modes:

  • Standard Operation (App/Web Interface):

    • Remote control includes On/Off, temperature set points, fan speeds, vane positions, and ambient temperature monitoring (Page 19, User Manual).

  • Backup Operation (IH Button):

    • Single click (AC Off) activates cool mode at 25°C.

    • Double click (AC Off) activates heat mode at 21°C.

    • Single/Double click (AC On) turns the AC unit off (Page 20, User Manual).

Advanced Features:

  • IR Wireless Remote Controller Feedback:

    • Real-time status updates from original remote controller reflected in the IntesisHome app (Page 14, User Manual).

  • Anti-Frost Function:

    • Prevents freezing conditions by automatically managing temperature (Page 22, User Manual).

  • Calendar, Timers, and Scenes:

    • Schedule automatic operations and set scenes through the web/app interface (Page 21, User Manual).

  • Advanced Configuration:

    • Manage LED intensity, external LED status, and temperature offset (Page 21, User Manual).

Troubleshooting and Support:

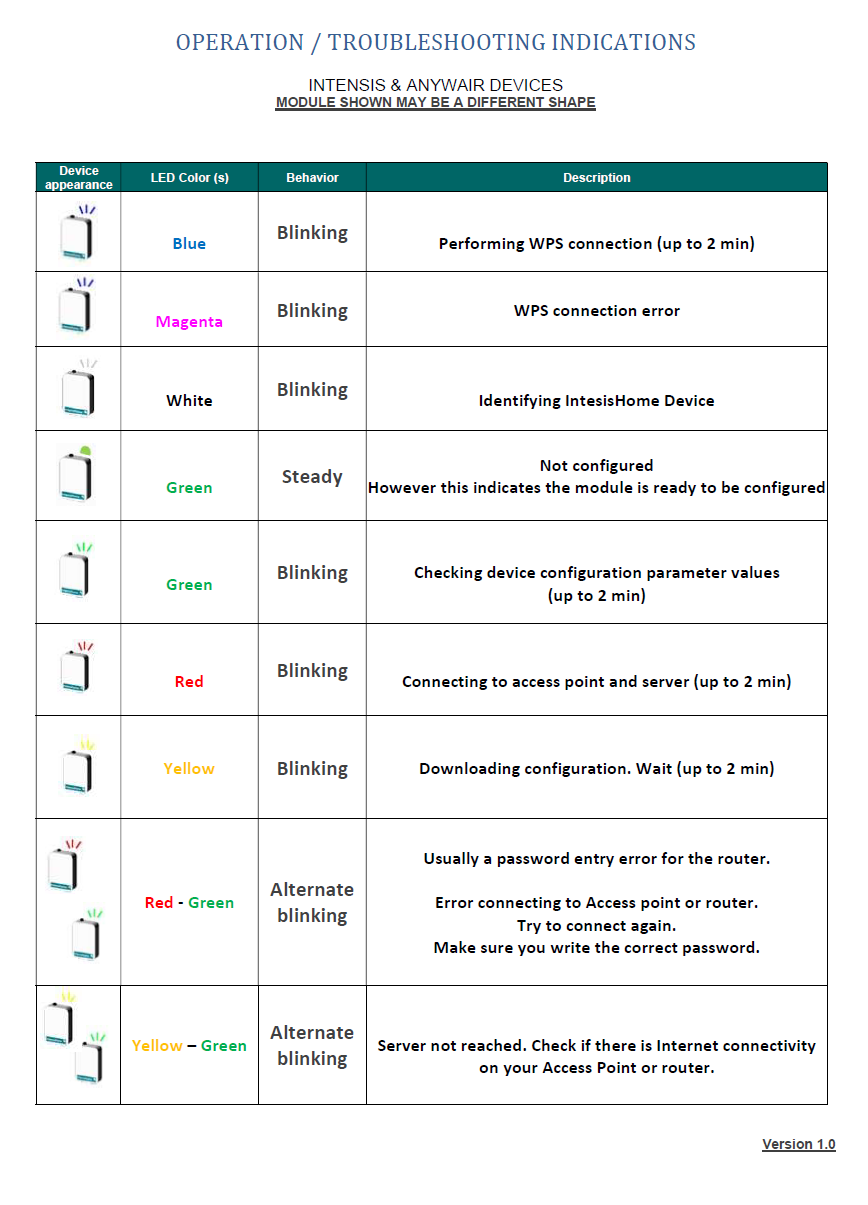

  • LED status indicators are available to diagnose and resolve issues quickly (Page 24, User Manual).

  • Detailed troubleshooting guide included on Page 26 of the User Manual.

  • Additional support available at intesishome.com/support.
