Overview

When installing a wired remote controller on a Fujitsu VRF high wall split system, a specific connecting cable is required to link the indoor PCB (Printed Circuit Board) to the wired controller.
Using the correct part ensures reliable communication and control functionality between the indoor unit and the remote.

Applicable Models and Parts

Model RangeDescriptionPart Number
ASYA18–30GACHConnecting cable for wired remote controller installation9708582016
ASYA07–14GACHConnecting cable for wired remote controller installation9707476019

Notes

  • The cable is used to connect the indoor unit PCB to the wired remote controller terminal block.

  • Only the specific part numbers listed above are approved for use — substitutes are not recommended, as incorrect wiring may cause communication errors or controller malfunction.

  • Each indoor unit requires one connecting cable for the wired controller installation.

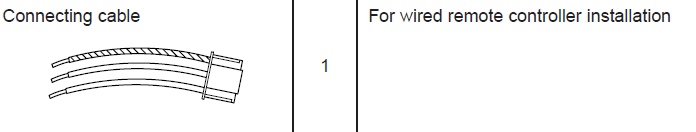

Illustration



Summary

To connect a wired remote controller to a VRF high wall indoor unit:

  • Use Part #9708582016 for models ASYA18–30GACH

  • Use Part #9707476019 for models ASYA07–14GACH

This ensures correct electrical compatibility and reliable controller operation.
